Generating Reports

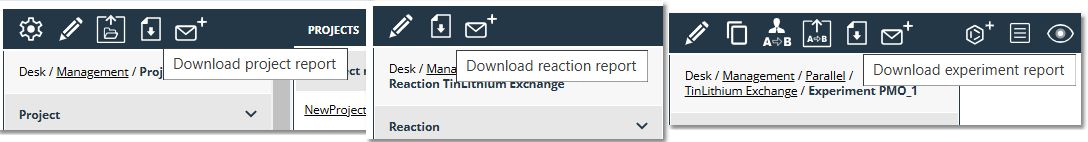

You can generate project, reactions and experiments just by clicking on the applicable button

download_report

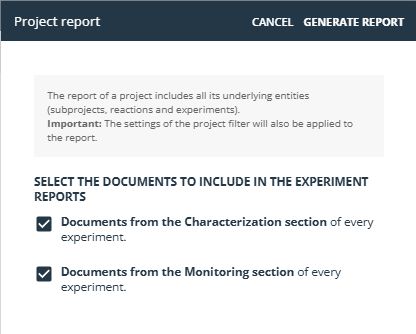

When exporting a project report, you will have the capability to export the documents used for the characterization and monitoring for every experiment:

Project_report_1

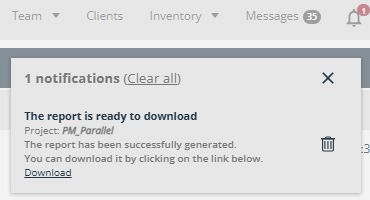

Once the report will be ready to be downloaded, you will get a notification in the Mbook toolbar:

download_report_2

Clicking on the Download button will create a zip file with a subfolder per each reaction and with information about each experiment.

When reporting a reaction, you will get a PDF with a summary of the experiments included in the reaction.

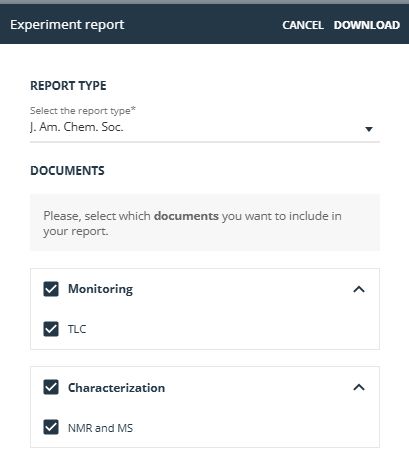

When reporting an experiment, you will be able to select the multiplet report format and to include the documents of the monitoring and characterization sections:

report_experiment_2

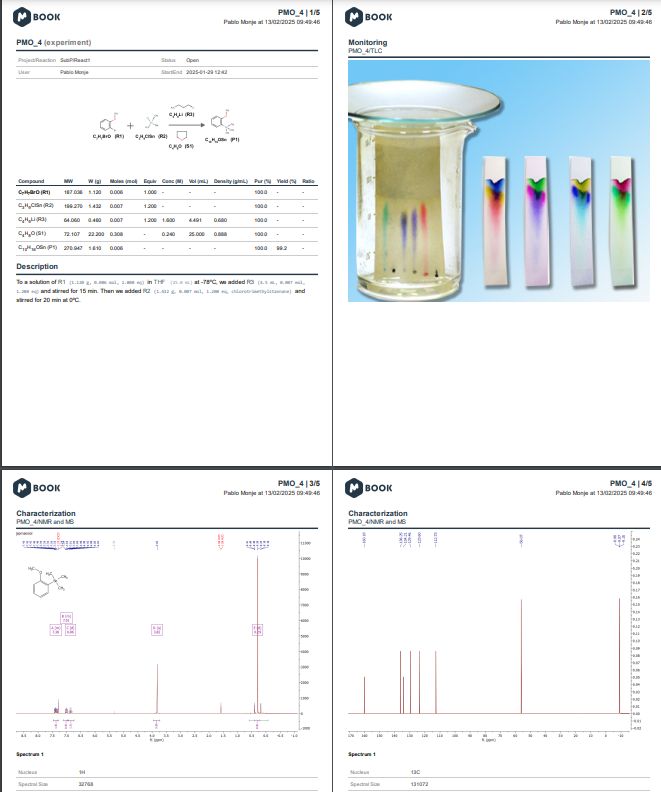

By clicking on the ‘download' button, a PDF will be generated for the current experiment:

Exper_PDF

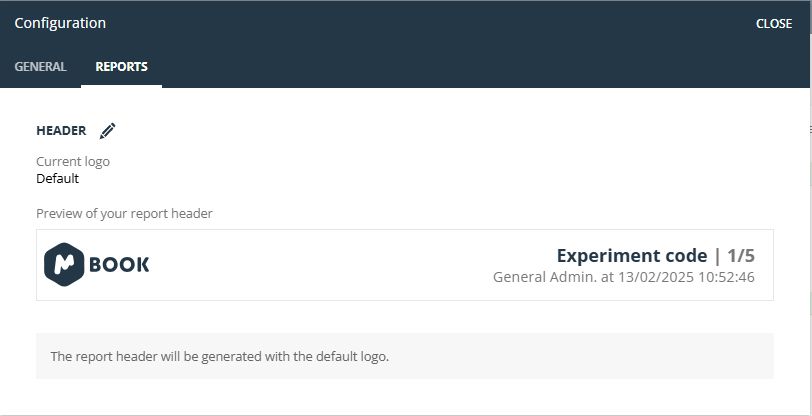

From the 'Configuration panel', the administrator can upload a corporate logo that will be displayed on the header of all Mbook reports:



config_admin
